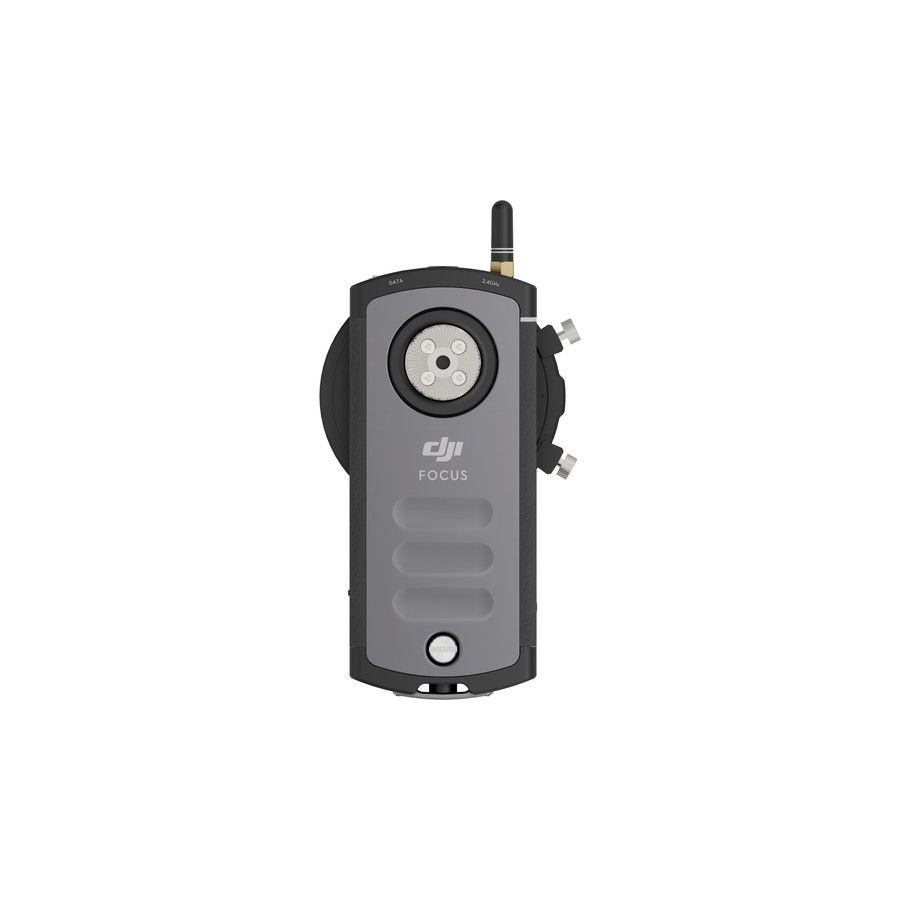

DJI's Focus is a wireless follow focus that integrates natively with the Zenmuse Z5 series of camera/gimbals systems and can be mounted on rigs equipped with 15mm or 19mm rods - including the Ronin and Ronin-M gimbals. The Focus features a handheld remote controller (transmitter) with a focus knob to give to the feel of a traditional mechanical follow focus. The wireless system sports a range of up to 330' line-of-sight with a delay of only 14ms.
- Control accuracy of ±0.002°
- Self-contained drive unit combines brushless motor and receiver in a single module - simplifying installation and requiring only a single power source
- Use with Inspire 1 Quadcopter carrying Zenmuse X5 or X5R camera
- Adjustable endpoints - ideal for lenses, such as photo lenses, that lack "hard" stops
- Programmable focus points and other parameters adjustable through controller menu
- OLED display on controller for menu access and status display
- Compatible with DJI's Ronin and Ronin-M gimbals
- Works with third-party gimbals or rigs that have 15mm or 19mm rod support
- Dual communication ports for future upgrades
- Built-in rosette for greater mounting flexibility
Controller Battery Model: FB01-554461
Chemistry: Lithium-polymer (LiPo)
Capacity: 1700 mAh / 6.29 Wh
Voltage: 3.7 VDimensions 6 x 3.4 x 3.5" / 153 x 86 x 90 mm Weight 1.6 lb / 745 g Radio System Frequency 2.415 to 2.473 GHz Range 328.1' / 100 m Transmit Power 14 dBm General Operating Temperature -4 to 131°F / -20 to 55°C
